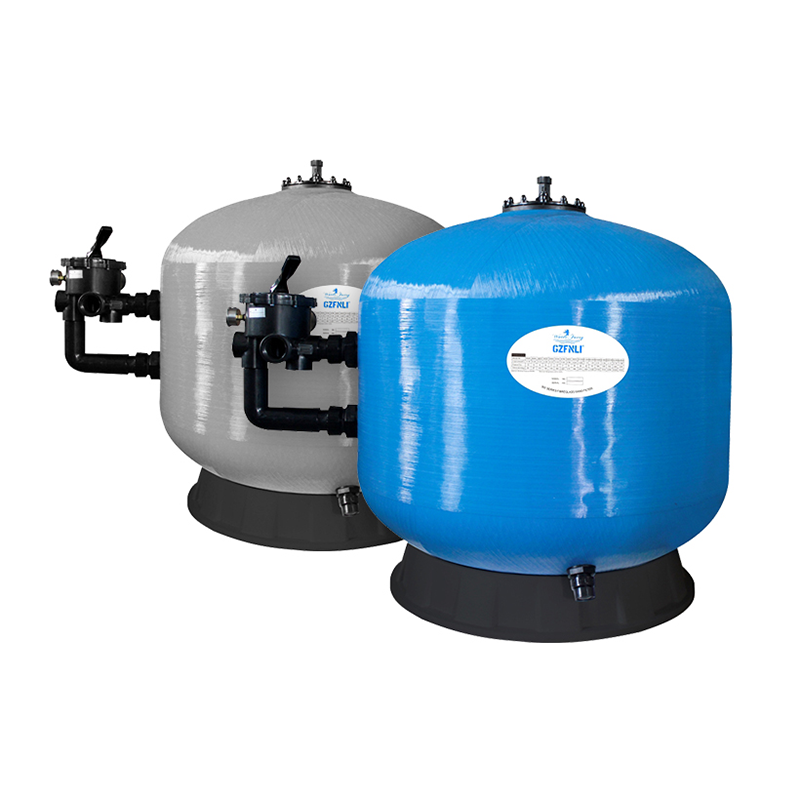

The High-Efficiency Side-Mount Sand Filter Pool stands as a revolutionary filtration solution tailored to meet the dual demands of superior water clarity and energy conservation for both residential and commercial pool owners. Distinguished from conventional top-mount filters, its innovative side-mount structure is meticulously engineered to maximize space utilization in constrained areas while delivering uncompromising performance—boasting flow rates up to 30 GPM and filtration accuracy of 5–15 microns. Crafted from premium corrosion-resistant fiberglass-reinforced polymer (FRP), this filter is built to endure the harshest pool environments, including prolonged exposure to chemicals and fluctuating temperatures. Whether integrated into saltwater, chlorine, or freshwater systems, it seamlessly pairs with variable-speed pumps to slash energy consumption by an impressive 30–50%, making it a cost-effective choice for long-term operation.
Multi-Layer Sand Media: Employs a precision-graded sand bed (0.45–0.55 mm quartz sand) combined with an optional activated carbon layer to target and trap a wide spectrum of contaminants, from fine debris and algae spores to oils and organic residues, ensuring consistently crystal-clear pool water.

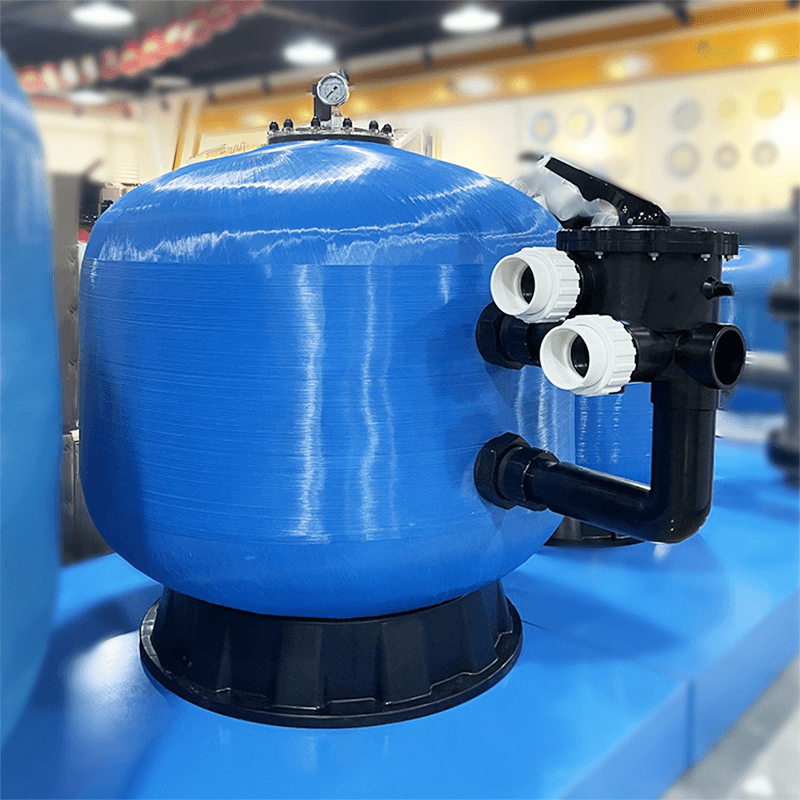

Pressure Gauge Monitoring: Equipped with a high-precision pressure gauge that provides real-time readings, enabling users to identify when backwashing is necessary—typically when pressure rises 8–10 PSI above baseline—thus preventing clogs and maintaining peak filtration efficiency.

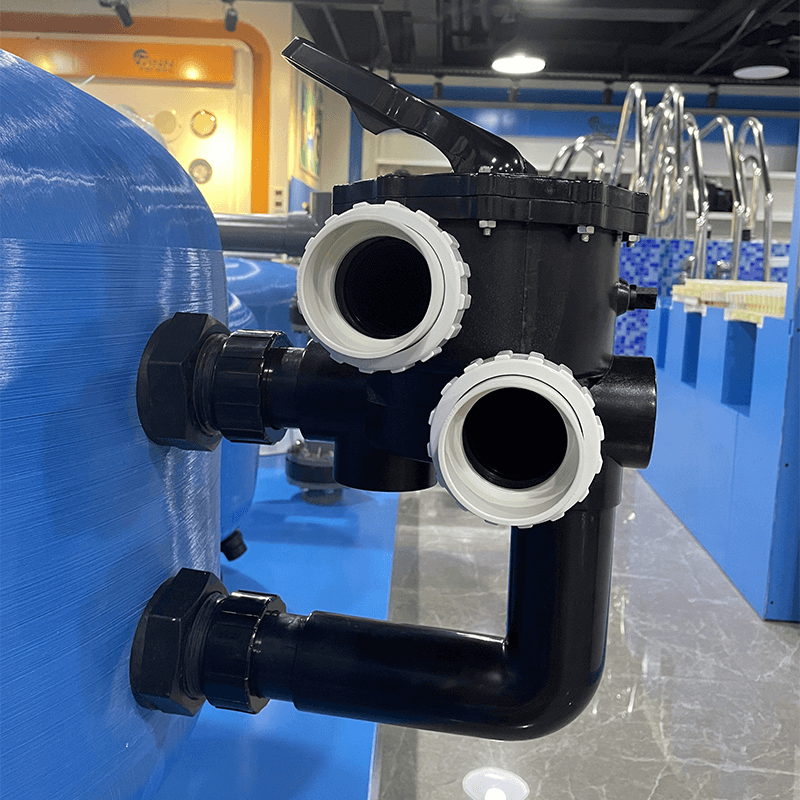

Vertical Side-Mount Configuration: Requires 30% less horizontal space than traditional top-mount filters, making it an ideal choice for compact backyard setups, underground installations, or pools with limited equipment room access.
Integrated Base Plate: Features a reinforced, pre-drilled base plate that eliminates the need for additional mounting brackets, ensuring stable placement on various surfaces and streamlining the installation process by up to 50% compared to non-integrated designs.
Low-Pressure Drop Design: Optimized internal hydraulics minimize pressure resistance, reducing the workload on connected pumps and enabling compatibility with energy-efficient variable-speed models (such as the VAC300-ECO) that deliver 70% savings on electricity costs versus single-speed alternatives.
High Flow Rate: Capable of handling up to 30 GPM without sacrificing filtration precision, making it suitable for large residential pools (50,000+ gallons) and small commercial facilities with moderate usage demands.
UV-Resistant FRP Tank: The filter tank is constructed from UV-stabilized FRP that withstands temperatures up to 140°F (60°C) and resists cracking, fading, and chemical degradation, even after years of direct sunlight exposure.
Stainless Steel Hardware: All bolts, fittings, and valve components are crafted from marine-grade stainless steel to ensure corrosion resistance in both chlorinated and saltwater environments, extending the filter’s service life to 10+ years with proper maintenance.
Residential Pools: Perfectly suited for backyard pools ranging from 10,000–50,000 gallons, particularly those where space is limited due to landscaping or patio layouts.
Commercial Facilities: Ideal for hotels, fitness centers, and community pools requiring reliable high-flow filtration—for example, 25–30 GPM is sufficient to maintain water quality in Olympic-sized training pools with daily usage.
Saltwater Systems: Fully compatible with chlorine generators and salt cells, ensuring seamless integration with modern low-chlorine sanitization methods without compromising filter performance.
Water Features: Supports auxiliary water elements such as fountains, waterfalls, and attached spas by maintaining consistent water clarity and preventing debris buildup in circulation lines.
Q: How often should I backwash the filter?
A: Backwashing is recommended when the pressure gauge exceeds 8–10 PSI above the clean pressure reading, which typically occurs every 2–4 weeks depending on pool usage, debris levels, and environmental factors like nearby trees or pollen.
Q: Can this filter be used with a DE filter?
A: No, the side-mount design is specifically optimized for sand media filtration. For diatomaceous earth (DE) filtration needs, we recommend our Professional Top-Mount Sand Filter, which offers optional DE grid upgrades for ultra-fine particle removal.
Q: What is the warranty period?
A: The FRP tank is backed by a 10-year limited warranty against manufacturing defects, while the valve assembly and hardware components carry a 2-year warranty for added peace of mind.
Q: Does it require professional installation?
A: While DIY installation is feasible for experienced homeowners with plumbing knowledge, we strongly recommend hiring a certified pool technician to ensure proper alignment of plumbing connections, valve calibration, and system priming—critical steps for optimal performance and warranty validation.
Q: Can I use this filter for above-ground pools?
A: Yes, it is fully compatible with both in-ground and above-ground pools when paired with a properly sized pump (1–2 HP) and appropriate plumbing adapters to match above-ground pool return line configurations.
| Item Diameter Number D(mm) | Pod Row Farallon Size (rem) Area(ms) | Tank Total Height height | Output Height | Input Distance | Port Distance | Total Sand Width Quantity | |||||
| SG 525 | 525 | 1.5' | 12 | 0.19 | 610 | 720 | 410 | 475 | 150 | 885 | 65 |
| SG 600 | 600 | 1.5' | 14 | 0.22 | 620 | 730 | 430 | 495 | 150 | 960 | 115 |
| SG 650 | 650 | 1.5' | 17 | 0.32 | 695 | 805 | 450 | 515 | 150 | 1010 | 145 |
| SG 700 | 700 | 1.5' | 19 | 0.35 | 715 | 825 | 470 | 535 | 150 | 1060 | 180 |
| SG 750 | 750 | 2.0' | 21 | 0.40 | 765 | 875 | 540 | 615 | 200 | 1140 | 225 |
| SG 800 | 800 | 2.0' | 24 | 0.50 | 815 | 925 | 550 | 625 | 200 | 1190 | 275 |
| SG 900 | 900 | 2.0' | 30 | 0.64 | 900 | 1010 | 620 | 695 | 200 | 1290 | 390 |
| SG 1050 | 1050 | 2.0' | 38 | 0.88 | 1065 | 1175 | 700 | 775 | 200 | 1440 | 615 |
| SG 1200 | 1200 | 2.0' | 42 | 1. | 1200 | 1310 | 780 | 855 | 200 | 1590 | 920 |
