Variable Speed Pool Pumps Technical Specifications
Motor Power: 3HP (2.2kW) ECM Technology
Speed Settings: 8 programmable presets (5003450 RPM)
Flow Rate: Adjustable 15120m³/h
Connection Size: 63mm (2.5") union fittings

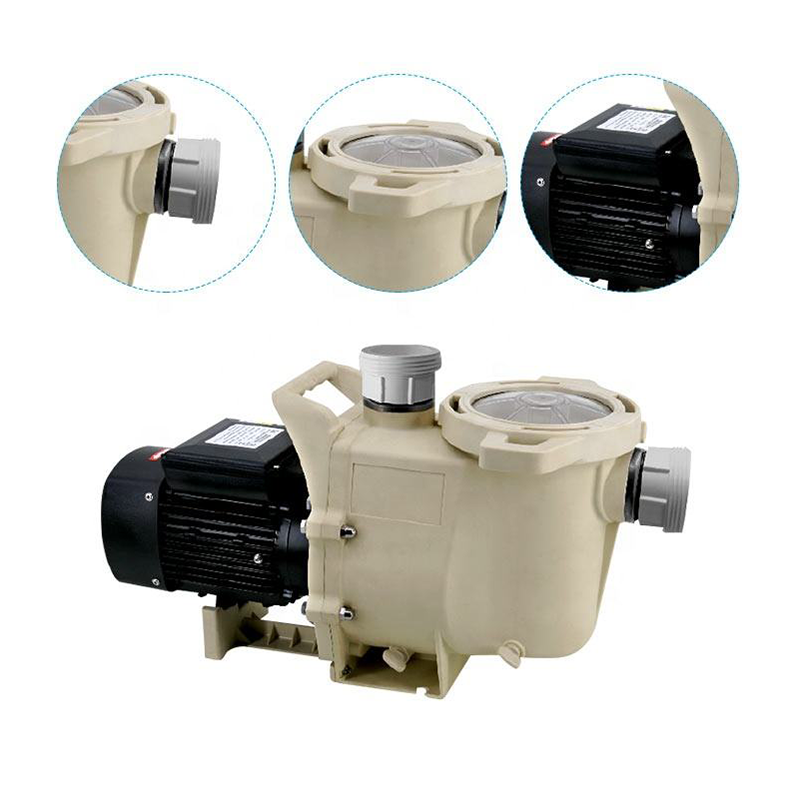

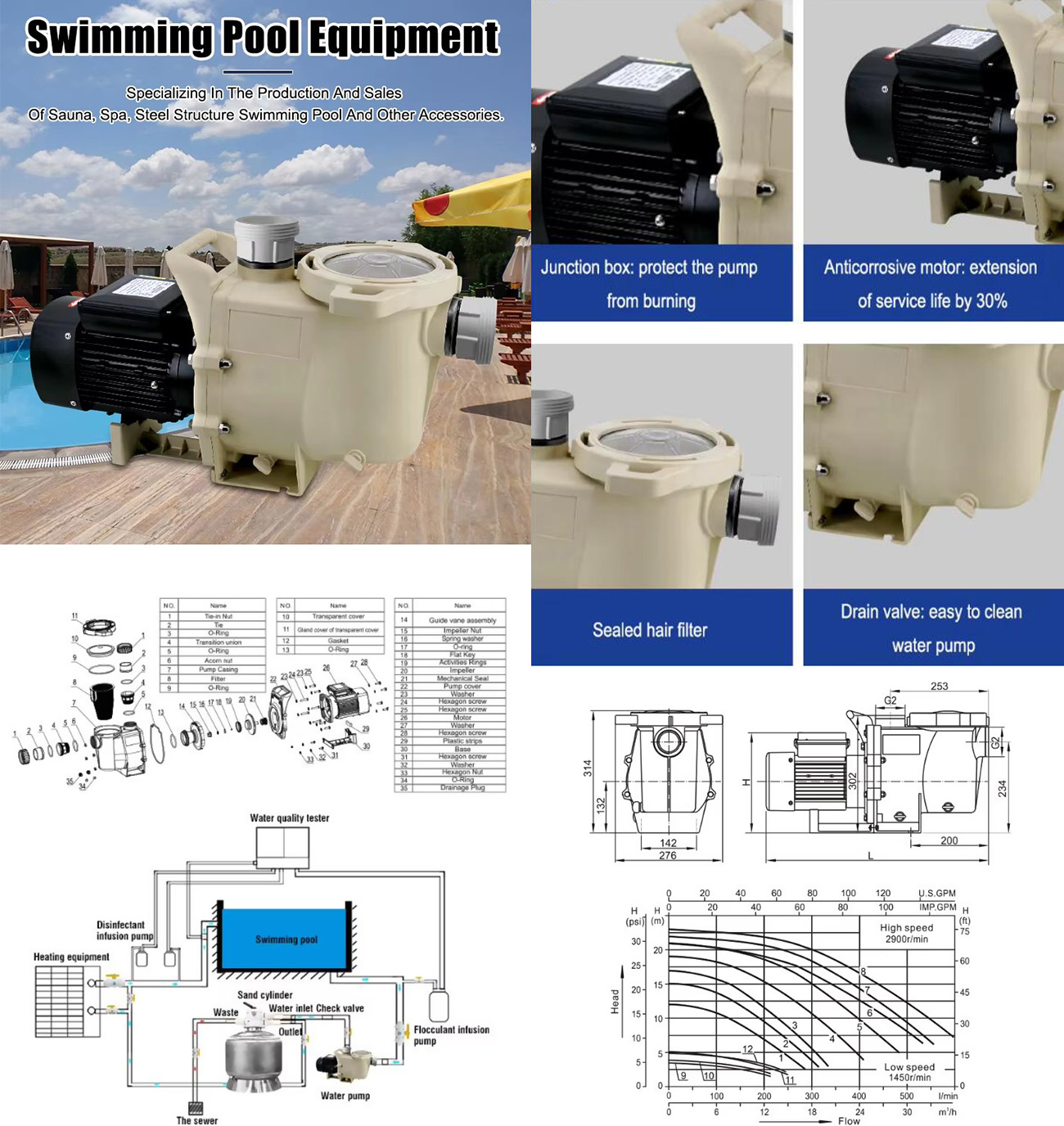

Key Components:
ArmorShield™ Junction Box: Triplelayer waterproof protection
TitaniumAlloy Shaft: 30% longer lifespan than stainless steel
ClearView™ Filter Basket: 40% larger debris capacity
Smart Drain Valve: Onetouch cleaning system
Electrical Pool Pump 5 IndustryLeading Features
AI Speed Optimization: Automatically adjusts flow based on filter pressure
DualCooling System: Liquid + air cooling for continuous operation
NanoCoated Windings: Saltwater/chlorine resistant (IP68 rated)
PlugandPlay Upgrade: Fits existing 2"/2.5" plumbing systems
High Pressure Pool Pump System Integration
Complete Water Management:
Seamless pairing with sand filters and chemical feeders
Builtin timer for synchronized backwash cycles
Compatible with all major pool automation systems
Swimming Pool Water Pump Professional Monitoring
Realtime energy consumption tracking
Leak detection alerts
Performance history logging
Product Parameters
| Model | Qmax(l/min) | Hmax(m) | Power (kw) | Amps |
| SWPB075 | 285 | 12 | 0.55 | 3.2 |
| SWPB100 | 315 | 15 | 0.75 | 3.8 |
| SWPB120 | 335 | 17 | 0.9 | 4.6 |
| SWPB150 | 400 | 19 | 1.1 | 5.2 |
| SWPB200 | 480 | 21 | 1.5 | 7 |
| SWPB250 | 530 | 21 | 1.85 | 8.6 |
| SWPB300 | 550 | 22 | 2.2 | 10 |
Variable Speed Pool Pumps Technical Specifications
Motor Power: 3HP (2.2kW) ECM Technology
Speed Settings: 8 programmable presets (5003450 RPM)
Flow Rate: Adjustable 15120m³/h
Connection Size: 63mm (2.5") union fittings
Key Components:
ArmorShield™ Junction Box: Triplelayer waterproof protection
TitaniumAlloy Shaft: 30% longer lifespan than stainless steel
ClearView™ Filter Basket: 40% larger debris capacity
Smart Drain Valve: Onetouch cleaning system
Electrical Pool Pump 5 IndustryLeading Features
AI Speed Optimization: Automatically adjusts flow based on filter pressure
DualCooling System: Liquid + air cooling for continuous operation
NanoCoated Windings: Saltwater/chlorine resistant (IP68 rated)
PlugandPlay Upgrade: Fits existing 2"/2.5" plumbing systems
High Pressure Pool Pump System Integration
Complete Water Management:
Seamless pairing with sand filters and chemical feeders
Builtin timer for synchronized backwash cycles
Compatible with all major pool automation systems
Swimming Pool Water Pump Professional Monitoring
Realtime energy consumption tracking
Leak detection alerts
Performance history logging
Product Parameters
| Model | Qmax(l/min) | Hmax(m) | Power (kw) | Amps |
| SWPB075 | 285 | 12 | 0.55 | 3.2 |
| SWPB100 | 315 | 15 | 0.75 | 3.8 |
| SWPB120 | 335 | 17 | 0.9 | 4.6 |
| SWPB150 | 400 | 19 | 1.1 | 5.2 |
| SWPB200 | 480 | 21 | 1.5 | 7 |
| SWPB250 | 530 | 21 | 1.85 | 8.6 |
| SWPB300 | 550 | 22 | 2.2 | 10 |
